| Brand Name : | MH motors |
| Model Number : | MH6010-16520 |
| Certification : | ETL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 3000PCS/day |
| Delivery Time : | 30 work days |

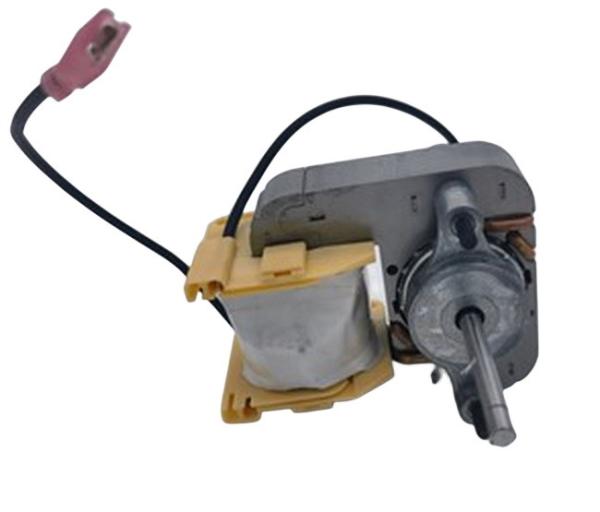

China 2.38" 20W 0.27A 208VAC C Frame Motor AC Single Phase Shade
Pole
The motor is constructed using efficient electrical steel, which
helps improve motor efficiency, reduce energy consumption, and
enhance performance. It can be used in various applications that
require a small motor size, low power consumption, and efficient
performance.
Quick Review:
| roduct Name: | China 2.38" 20W 0.27A 208VAC C Frame Motor AC Single Phase Shade Pole | Motor Type: | MH6010-16521 |
|---|---|---|---|
| Rated Voltage/Frequency: | 208Vac/60Hz | Current(A): | 0.24 |
| Input Power(W): | 20 | Output Speed(RPM): | 3000 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | SLEEVE BEARING |
| Insulation Class: | H | Agency: | ETL |
| Output Torque( Oz.in): | 3.2 | Protect Method: | ZP |
Note: Can be customized according to customer requirements, please
contanct us.
Production Feature :
Air Flow Curve
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
