Shanghai MH Electric Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | MH motors |
| Model Number : | MH6038-38501 |
| Certification : | ETL/CE/CCC |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1200PCS/day |
| Delivery Time : | 30-35 work days |

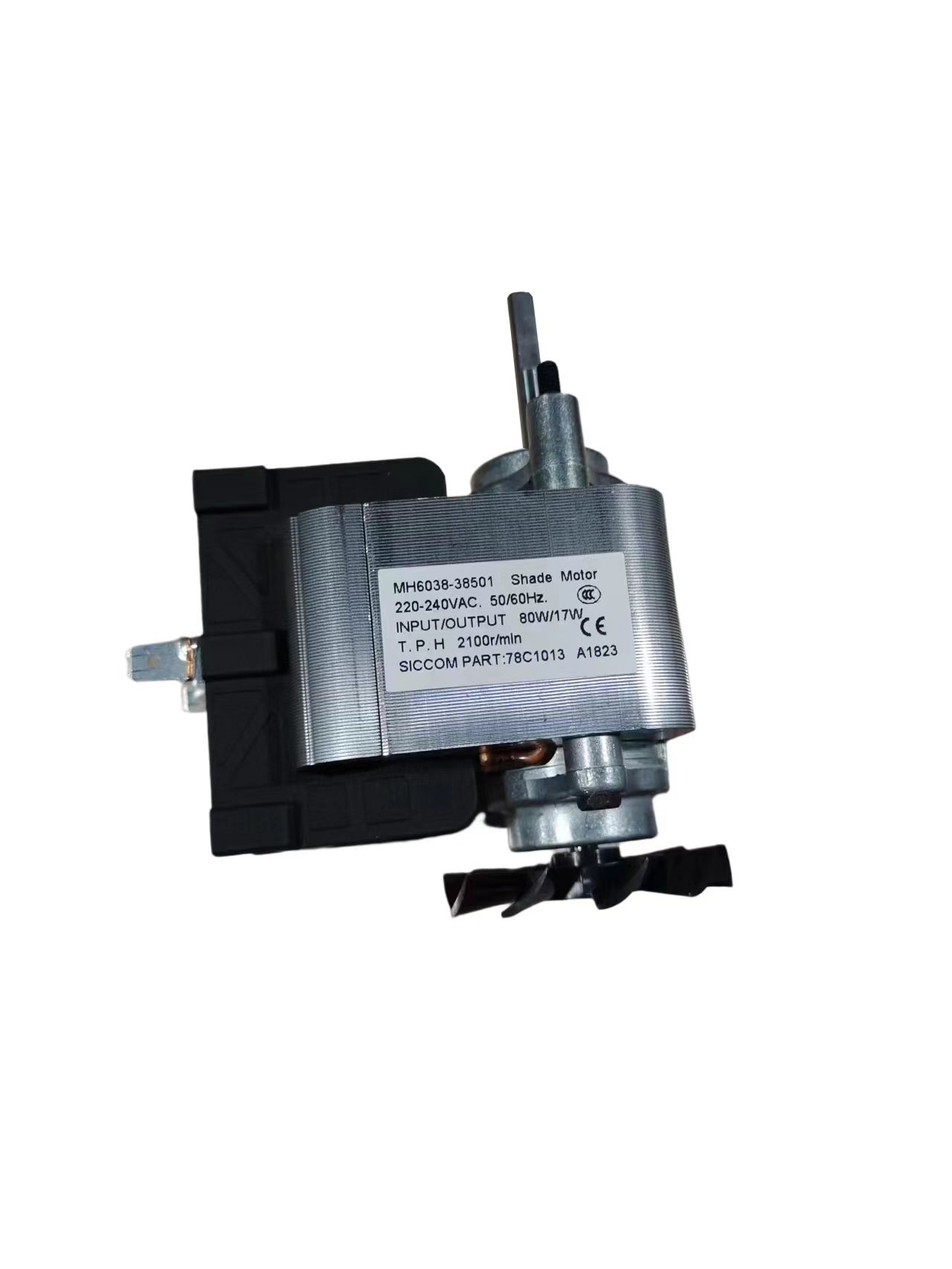

China 60mm 76W 230VAC 50Hz C Frame Motor AC Single Phase Shade Pole
C-frame shaded pole motors (sometimes called Skeleton Motors) are a type of fractional horsepower, small, single phase induction motors that powers fans and blowers.
These shaded-pole motors are the most economical means of providing rotational motion. Due to the simplicity of its construction, they can be configured to fit most any mounting arrangement.
Production Feature :
Specification:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP |
| Output | |||||
| 9.53(3/8) | 110-120 | 50/60 | 3000 | 1.4 | 1/225 |
| 12.50(1/2) | 3000 | 3.1 | 1/112 | ||
| 15.63(5/8) | 3000 | 4.3 | 1/90 | ||
| 18.75(3/4) | 3000 | 6 | 1/60 | ||
| 21.88(7/8) | 3000 | 7.5 | 1/45 | ||
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |
Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements
Air Flow Curve
Prodcution Package :
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.
Main Appilication:
Suitable for different kinds of household and commercial used
appliances.
Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
