| Brand Name : | MH motors |
| Model Number : | MH6038-38197 |
| Certification : | ETL/CE/CCC |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1000pcs/day |
| Delivery Time : | 35 work day |

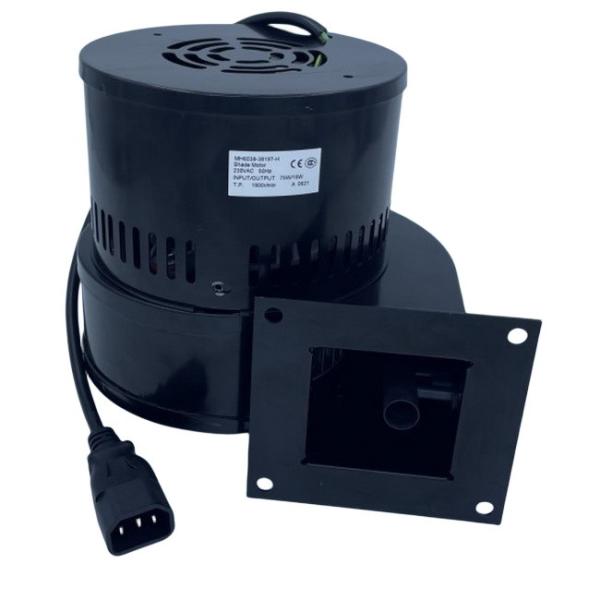

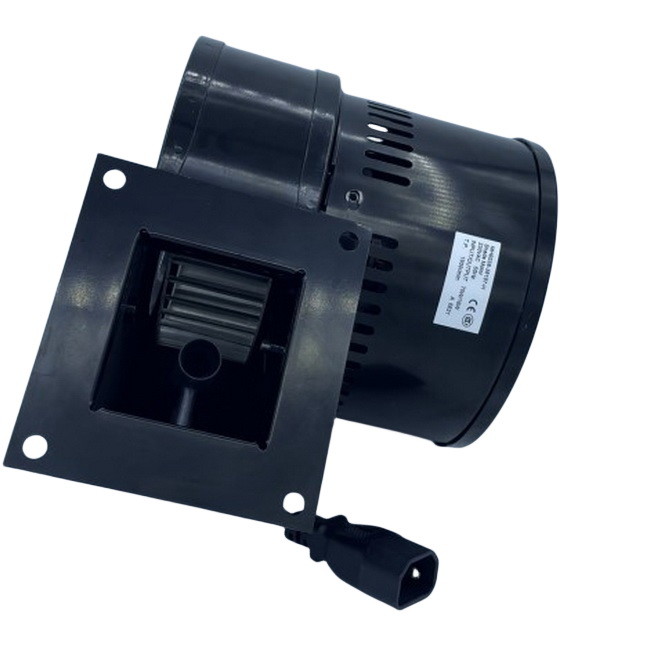

71W A 115V High Efficiency Big Air volumn Convection Fan Motor
Blower for Boiler
This fan motor blower is designed to provide a large volume of air flow efficiently. It is specifically intended for use in boiler systems to enhance air convection and improve heat transfer. By increasing the airflow volume, the fan motor blower can improve the efficiency of the boiler and ensure even heat distribution throughout the system.
Quick Review:
| Product Name: | 71W A 115V High Efficiency Big Air Volumn Convection Fan Motor Blower For Boiler | MH MODEL: | MH6038-38197 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current(A): | 0.62 |
| Input Power(W): | 71W | Speed(RPM): | 1616 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | Sleeve Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 17 |
| Air Volume(CFM): | 113 | Application: | BOILER |
Production Features:
1. Be powered by C-frame shaded pole motor, high efficiency and large volume.
2. Quiet construction design.
3. Thermally Protected
4. Cooling fan for the motor design, long lasting.
5. Helps reduce costly energy bills.
6. Can handle up to 500°F air in housing.
7. Protective cover design for greater safety
8. Comprehensive black electrophoretic paint surface treatment
Air Flow Curve:
