Shanghai MH Electric Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | MH motors |
| Model Number : | MH6038-38439 |
| Certification : | UL /ETL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1500PCS/day |
| Delivery Time : | 20-25 work days |
AC Shade Pole Room Air Blower Motor Fan 4x4 Squirrel Cage Blower
Production Features:
1. 4X4 inches (about 10X10 centimeters), which is suitable for
small combustion equipment.

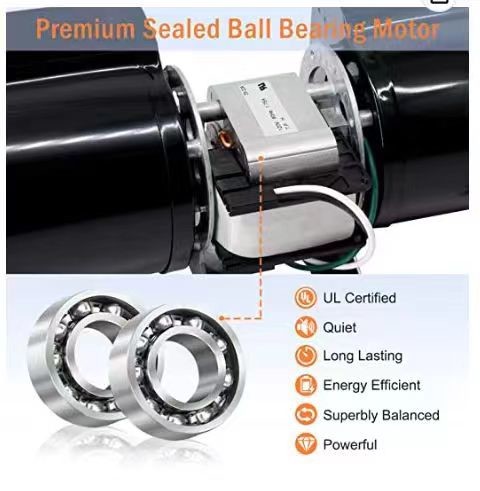

2. It adopts double rolling bearing design, making the fan rotation
smoother, reducing friction and noise.
3. The fan blade is made of high-temperature resistant material,
which can withstand high-temperature environment and extend the
service life of the fan.
4. The double squirrel cage blower can help evenly distribute the
heat generated by the real fire fireplace to every corner of the
room, improve heat efficiency and reduce energy waste.
5. A dual outlet design with high air volume, meeting the efficient
heating requirements of large area rooms.
6. The fan is equipped with silicone pads on its four mounting feet
to effectively reduce noise and vibration during operation.
7. The four fixed bracket holes are designed for easy installation.
Quick Review:
Model Type:MH6038-38439 Motor Type:AC Shade Pole Motor | |||
| Rated Voltage/Frequency | 115Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) | H:0.9 L:0.52 | Bearing Type | NMB Ball Bearing |
| Input Power(W) | H:60 L:36 | Insulation Class | H |
| Speed(RPM) | H:2200 L:1300 | Safe Certification | UL/ETL |
| Air Flow(CFM) | H:85 | Protection method | TP(THERMAL PROTECTOR) |
| L:48 | Vibration(cm/s) | H:＜0.25 L:＜0.05 | |
Production Drawing:
Production Description:
1. 4x4 Squirrel Cage Blower
2. Typical applications in fireplace and pellet stove equipment.
3. 4 Silicone gaskets design: Effectively reduce the noise and vibration.
4. Two speed motor design.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
