| Brand Name : | MH motors |
| Model Number : | MH6029-29507（60x300mm） |
| Certification : | UL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1200PCS/day |
| Delivery Time : | 30-35 work days |

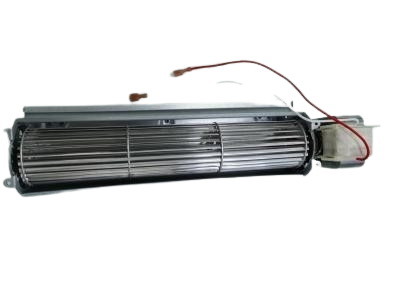

China AC Cross flow Blowers Fan 45W 0.7A 120VAC 60HZ UL agency
MH Products offers Crossflow Blower Fans for a variety of
industries. Crossflow Blower Fans are integrated into applications
to prevent system overheating or to generate air circulation. Our
Crossflow Blower Fans create a constant streamlined air flow. They
can be mounted either vertically or horizontally. Crossflow Blower
Fans are an ideal fit for applications where space is limited.
MH Products’ Crossflow Blower Fans are designed for quiet operation
and long service life. Our unique manufacturing capabilities allow
us to offer a range of sizes, flow rates, insulation
classifications and voltages. Contact us today to get started on a
solution for your application.
Specification:
Model Type:MH6029-29507 (60x300mm) Motor Type:AC Shade Pole Motor | |||
| Rated Voltage/Frequency | 120Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
| Current(A) | 0.7 | Bearing Type | NMB Ball Bearing |
| Input Power(W) | 45 | Insulation Class | H (Thermally Protected) |
| Speed(RPM) | 2100±150 | Agency Certification | UL |
| Wind Speed(m/s) | ≥7 | Air Volume(CFM) | 162 |
| Stator Vibration(cm/s) | ≤0.25 | Housing backside (Mid ) Vibration(cm/s) | ≤0.2 |
Production Feature :
1. Mature and reliable shroud pole motor technology that can
provide stable and reliable performance.
2. Low noise, large area air delivery, high air volume
3. With thermal protected, can automatically cut off the power
supply when the motor overheats, protecting the motor and equipment
from damage.
4. High-temperature resistant NMB ball bearings that can operate at
high temperatures and are suitable for applications in
high-temperature environments.
5. Multiple installation positions design for easy installation,
improving its versatility and flexibility.
6. Typically used in experimental equipment, particle stoves,
electric heaters, etc. and can provide stable air volume and air
delivery area, ensuring the safety and comfort of the equipment and
environment.
AIR FLOW CURVE
Prodcution Package :
The typical appilication:
Incubator
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.
The MH crossflow blower makes the air in the box evenly distributed
in every corner.
