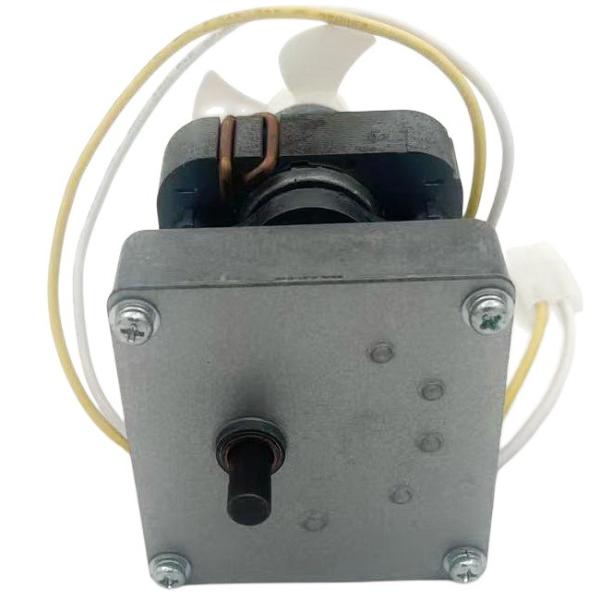

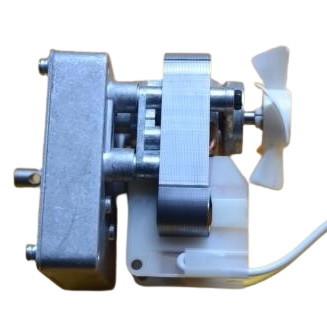

Pellet Grill 20W 120VAC 60Hz 3.0 RPM Auger Motor Shade Pole Gear
box
The Auger Motor shade pole gear box is designed for use with pellet
grills. It has a rated power of 20W, 120VAC and the 60Hz, the
rotating speed of 3.0 RPM. The motor is designed with a shade pole
gear box for efficient operation and low noise. It is used to
transport pellet fuel to the grill for cooking. The motor is
equipped with a protective gear box to prevent contamination from
dust, grease, and other pollutants. This product is widely used in
residential, commercial, and industrial pellet grills.
Specification:
Model Type:MH6016-16304 Motor Type:AC Shade Pole Motor | |||
Rated Voltage/Frequency | 120Vac/60Hz | Hi-Pot TEST | 1500vac50hz,1Ma,1s |
Current(A) | 0.4 | Protect Method | Z P |
Input Power(W) | 20 | Bearing Type | Sleeve Bearing |
Output Speed(RPM) | 3 | Insulation Class | H |
Output Torque(Nm) | 10 | Agency Certification | UL |
For detail information, please contact us for catalogue, thanks!
Production Description:
• Standard performance of C-type shaded pole motor
• Fully sealed design of the gear box rear cover to eliminate the
risk of long-term oil leakage
• The motor and gear box are assembled with four-foot end covers to
improve the stability of the motor operation
• The temperature range of the grease used in the gear box is
-25℃-280℃
• Low temperature rise design to improve the service life of the
motor, with a maximum temperature rise of no more than 20k
• Maximum output torque of 10.9Nm to improve customer experience.
![]() |
