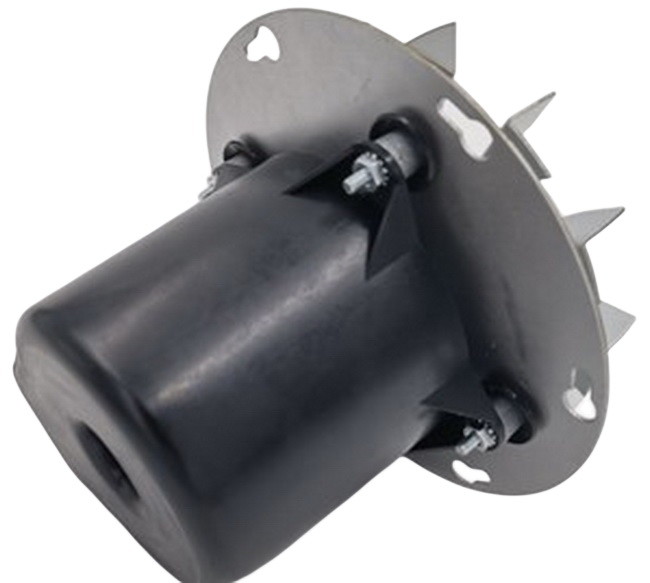

88W 1.45A Draft Inducer Blower shade pole Motor with Special plastic housing
Product Description:
1. With C-FRAME shaded pole motor, large torque,high efficiency
2. Double ball bearing designed, long lasting.
3. The exhaust blower comes with the complete assembly with gasket and housing.
4. Powerful, Quiet, Energy Efficient .
5. Variety of mounting patterns and options available.
6. Special plastic housing design for the motor
Quick Detail:
| Product Name: | 88W 1.45A Draft Inducer Blower Shade Pole Motor With Special Plastic Housing | Model Type:: | MH6038-38112 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120V60Hz | Current(A): | 1.45 |
| Input Power(W): | 88 | Speed(RPM): | 2700 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Start Voltage: | 81VAC60Hz |
| Protect Method: | TP | .Load Torque: | 65mN.m@2700rpm |
| Appliction: | PELLET STOVE | Agency: | UL/ETL |
For detail information, please contact us for catalogue, thanks!
Performance Curve:
Typically used for strong smoke exhaust in particulate-wall furnaces.
Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
