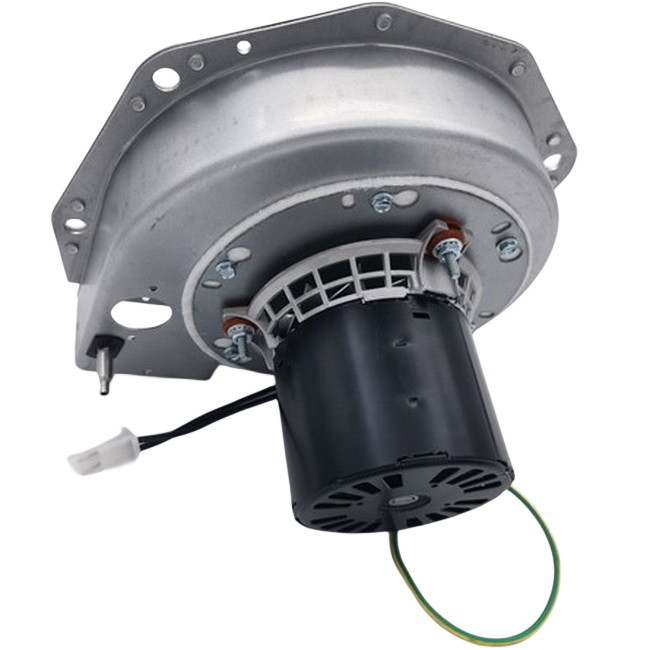

65W 0.78A 115V Draft Inducer Blower Exhaust fan in High Temperature Pellet Stoves
Production Description:
1. 3.3-inch shielded pole motor drive.
2. Three high-temperature resistant silicone gasket mounting design, effectively reducing noise and vibration.
3. Motor with self-cooling fan design, effectively extending the motor's lifespan.
4. Aluminum steel deep-drawn snail shell.
5. Dual high-temperature resistant ball bearing design.
6. Dual thermal insulation cotton design, ensuring insulation performance and preventing air leakage.
7. Typically used for forced air intake and exhaust in high-temperature environments.
8. Designed with static pressure nozzles, can be connected to a pressure switch for safer use.
9. Can be equipped with a cast aluminum adapter.
Quick Detail:
| Product Name: | 65W 0.78A 115V Draft Inducer Blower Exhaust Fan In High Temperature Pellet Stoves | Model Type:: | MH84-84557 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 0.78 |
| Input Power(W): | 65 | Speed(RPM): | 2850 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | B |
| Bearing Type: | NMB Ball Bearing | Protect Method: | TP |
| Appliction: | PELLET STOVE | Air Volume(CFM): | 85 |
Wind Speed(m/s): | 13 | Agency: | UL |
For detail information, please contact us for catalogue, thanks!

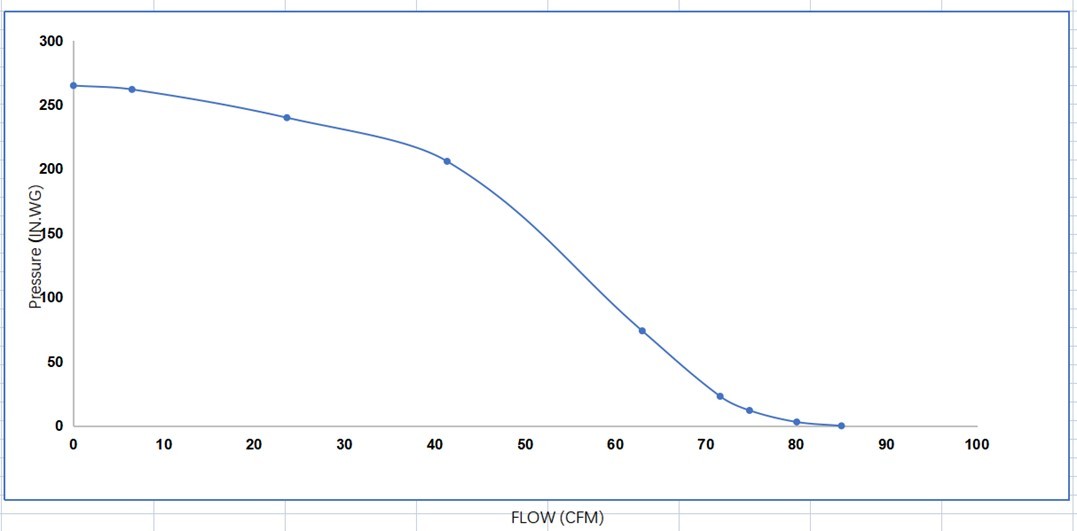

Air Flow Curve:
Main Application:
Typically used for strong smoke exhaust in pellet stoves.
Welcome your business chat and visit.
Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
