40W 0.7A Draft Inducer Blower Exhaust fan in high-temperature pellet stoves
This blower motor typically used for efficient draft induction in high-temperature pellet stoves which is specifically designed for use in pellet stoves and boiler systems to assist with exhaust fan and draft inducer functions. It is responsible for generating airflow for combustion and ventilation in the pellet stove or boiler system. It provides reliable performance and is certified by the UL agency for safety and quality assurance.
Quick Detail:
| roduct Name: | 40W 0.7A Pellet Stove Boiler Exhaust Fan Draft Inducer Blower Motor UL Agency | Model Type:: | MH6029-29405 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 0.7 |
| Input Power(W): | 40 | Speed(RPM): | 2450 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Insulation Class: | H |
| Bearing Type: | NMB Ball Bearing | Protect Method: | Z P |
| Wind Speed(m/s): | 17 | Air Volume(CFM): | 95 |
| Appliction: | PELLET STOVE/FIREPLACE | Start Voltage: | 168VAC |
| StaticPressure: | -600pa | Agency: | UL/ETL |
For detail information, please contact us for catalogue, thanks!

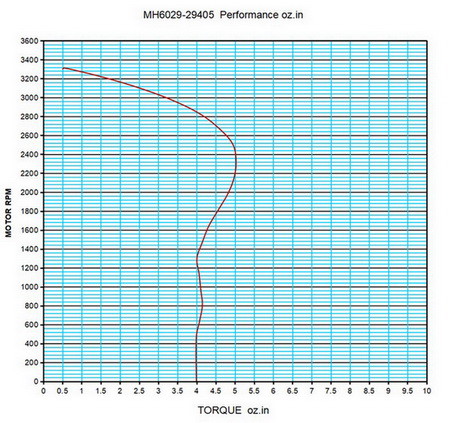

Torque Curve:
Production Description:
1. Driven by an AC shaded pole motor, effectively reducing noise.
2. Designed with high-temperature resistant ball bearings to ensure prolonged operation.
3. Shockproof design for low-noise operation.
4. Optional additional components available to achieve various functionalities, such as speed signal Hall feedback.
5. Suitable for high-temperature gas exhaust.
6. Can accommodate up to three speed control levels.
Welcome your business chat and visit.
Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
