| Brand Name : | MH motors |
| Model Number : | MH-R2E190-H045-01B |
| Certification : | CE /CCC |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1000PCS/day |
| Delivery Time : | 35 work days |

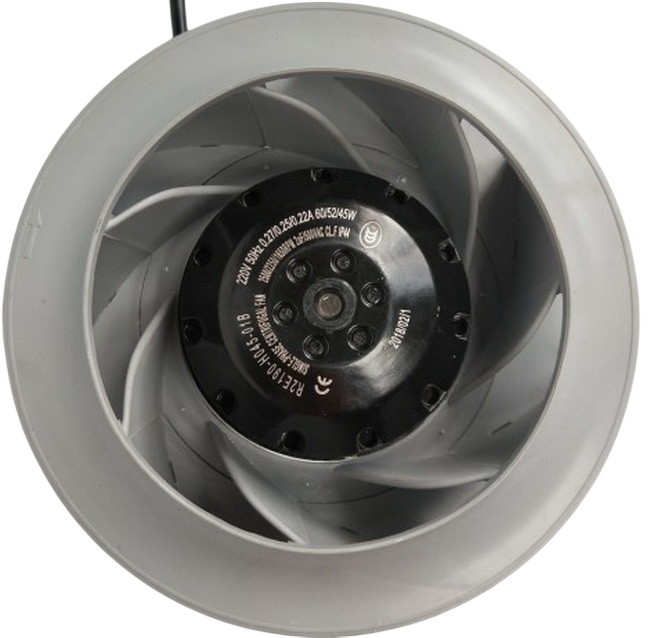

IP44 2-speed 220/230V AC external rotor Centrifugal Blower fan for air purifier or control cabinet
Production Description:
AC MOTOR
Protect method: SELF-RESETTING TOP WIRED INTERNALLY
ROTATION: CW(SEEN FROM ROTOR)
PROTECTION GRADE:IP55
TEMP S:-30℃+60℃
IMPELLER MATERIAL:PA66+25%GF
OPERATION MODE: S1
Application:air purifier/Control cabinet/LAB EQUIPMENT
The blower fan offers two different speed settings, allowing you to adjust the airflow according to your needs. As well as operates on AC power, features an external rotor design, and provides efficient airflow for air purification in air purifier systems.
Quick Review:
| Product Name: | IP44 2-speed 220/230V AC External Rotor Centrifugal Blower Fan For Air Purifier Or Control Cabinet | Motor Type: | MH-R2E190-H045-01B |
|---|---|---|---|
| Rated Voltage/Frequency: | 220/230V 50/60HZ | Current(A): | 0.27/0.35 |
| Input Power(W): | 60/75 | Output Speed(RPM): | 2500/2700 |
| Insulation Class: | F | Agency: | CE CCC |
| Air Volume(m³/H): | 317/350 | PST: | 450 /400 |
| Noise: | 65/68 DBA | IP: | 44 |
| Bearing Type: | BALL BEARING | Application: | Air Purifier/LAB EQUIPMENT |
| TEMP S: | -30℃+60℃ | OPERATION MODE:: | S1 |
Can be customized , please contact us to get more information!

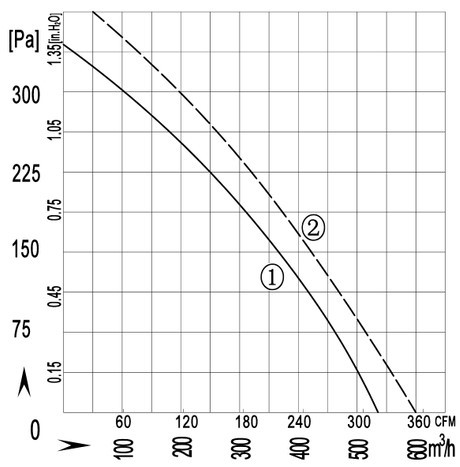

Air volume/Pressure Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
