| Brand Name : | MH motors |
| Model Number : | MH-RIG75-H042-01B |
| Certification : | CE |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1000PCS/day |
| Delivery Time : | 35 work days |

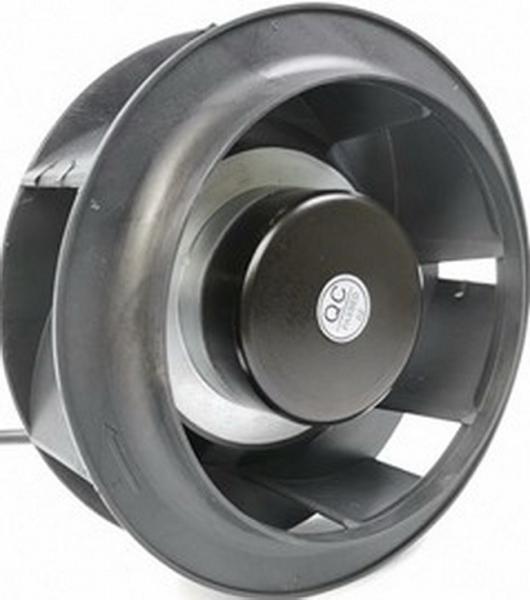

IP55 DC12/24/48VDC 34W Centrifugal Blower fan-DC Brushless external rotor
The fan utilizes a brushless DC motor with an external rotor design. Brushless DC motors offer improved efficiency, lower noise, and longer lifespan compared to traditional brushed motors. The external rotor configuration provides compactness and efficient airflow.
Quick Review:
| Product Name: | DC Brushless External Rotor Motor 34W IP55 | Rated Voltage/Frequency: | DC12/24/48VDC |
|---|---|---|---|
| Current(A): | 3.0/1.5/0.8A | Input Power(W): | 34W |
| Output Speed(RPM): | 3100 | Hi-Pot TEST: | 1500vac50hz,3Ma,1s |
| Insulation Class: | F | Agency: | CE |
| Air Volume(m³/H): | 538 | PST: | 365pa |
| Noise: | 64dB(A) | IP: | 55 |
| Bearing Type: | BALL BEARING | Application: | Air Purifier/Control Cabinet/LAB EQUIPMENT |
Can be customized , please contact us to get more information!
Production Description:
DC MOTOR
Protect method: Polarity Protection;Soft start
Locket-rotor protection
Over current protection
Over voltage protection
Technical features:0-10vdc/pwm speed control
PWM FREQUENCY:1-10KHZ
OPERATION MODE:S1
PROTECTION GRADE:IP55
TEMP S:-25℃+60℃
IMPELLER MATERIAL:PA66+25%GF

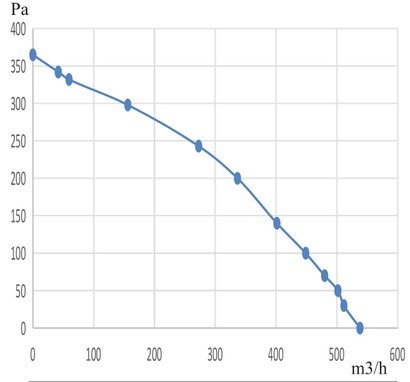

Air volume/Pressure Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
