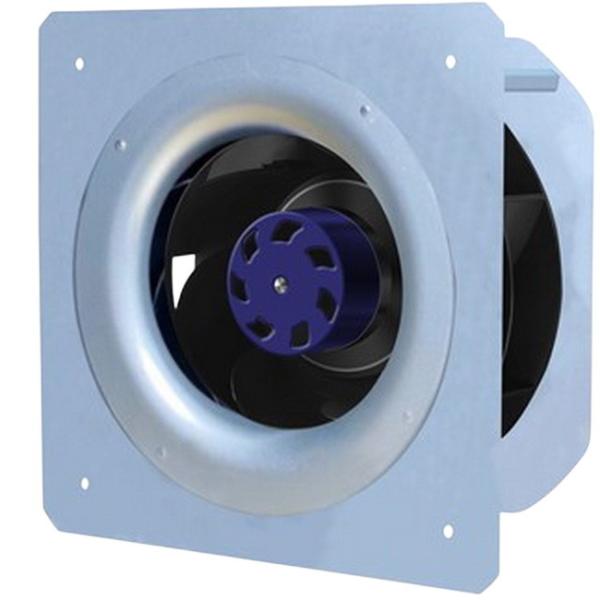

All-metal shell EC 230V 55W 0.4A Centrifugal Air Cooling Fan with Support Bracket
This centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable. Typical application in customer's ventilation, heating, refrigeration product or system.
Quick Review:
Model Type:MH-R3G175 Motor Type:EC Motor | |||
| Rated Voltage/Frequency | 230VAC50/60Hz | IP | 55 |
| Current(A) | 0.4 | Protect Method | Self-resetting TOP WIRED INTERNALLY |
| Input Power(W) | 55 | Bearing | Ball Bearing |
| Output Speed(RPM) | 2880 | Insulation Class | B |
| Air Volume(m³/H) | 520 | Agency Certification | CE |
| Temp .S | -25℃+60℃ | Noise | 65dB(A) |
Can be customized , please contact us to get more information!
Production Description:
1. Impeller material: PA66+25%GF
2. Bracket Material:Galvanized steel
3. Technical features:0-10vdc/PWM speed control
4. PWM frequency:1-10Khz
5. Operation mode:S1
6. Cable Length:500mm±10 or customized
7. Typical application:Hot exchange of communication base stations/dryer/ Biosafety cabinet
Air volume/Pressure Curve:
CONNECT DIAGRAM:
| BLUE | 230VAC |
| BROWN | 230VAC |
| YELLOW/GREEN | PE |
| RED | +10vdc out put |
| BLUE | GND |
| YELLOW | 0-10vdc/pwm speed control |
| WHITE | tacho ouput 2pulses/rev |
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
