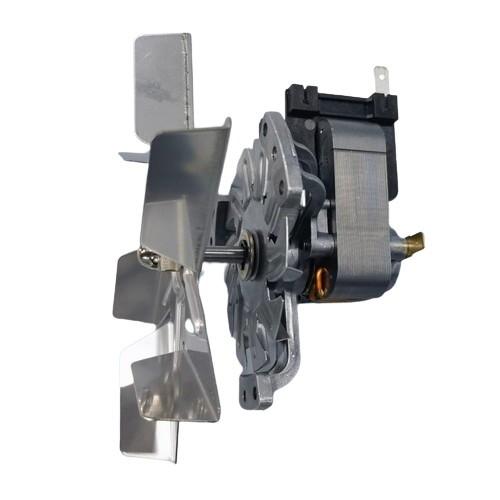

Hot Air Oven Air Circulation Oven Fan Ac Shade Pole Motor 230V 50HZ 42W
MH series of hot air convection blowers summary as below:
• Hot air convection blowers are designed for the special requirements in circulating hot air to operate within the high temperature zone；
• Several shaft size options;
• Basic design comprises a shaded pole motor;
• Special mounting plates available;
• Stainless steel, Galvanized steel, aluminized steel or die casting aluminum impeller available;
• Ball bearing or sleeve bearings with special lubricant deport for bearing temperature up to Max 200℃;•Application include: ovens, climate cabinets, sterilization equipment, meal and dish warmers and similar appliances.
• Hot air convection blowers are designed for the special requirements in circulating hot air to operate within the high temperature zone；
• Several shaft size options;
• Basic design comprises a shaded pole motor;
• Special mounting plates available;
• Stainless steel, Galvanized steel, aluminized steel or die casting aluminum impeller available;
• Ball bearing or sleeve bearings with special lubricant deport for bearing temperature up to Max 200℃;
• Application include: ovens, climate cabinets, sterilization equipment, meal and dish warmers and similar appliances.
Technical Rating Data
| MH PN# | Volt/Frq (Vac/Hz) | Power (W) | Current (A) | Speed (RPM) | A Dimension (mm) | H Dimension (mm) | L Dimension (mm) | Bearing | Fan Model | Agency | Incl.Cls |
| MH6019-19XXX | 220/230V, 50/60Hz | 42 | ≤ 0.4 | 1800±100 | 15-65 | 19 | 60 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6029-29XXX | 220/230V, 50/60Hz | 50 | ≤ 0.45 | 2300±150 | 15-80 | 29 | 70 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6035-35XXX | 220/230V, 50/60Hz | 55 | ≤ 0.4 | 2100±150 | 15-80 | 35 | 76 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6038-38XXX | 220/230V, 50/60Hz | 55 | ≤ 0.4 | 2300±150 | 15-80 | 38 | 78 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6019-19XXX | 115V 60Hz | 45 | ≤ 0.9 | 1800±100 | 15-80 | 19 | 60 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6029-29XXX | 115V 60Hz | 55 | ≤ 0.9 | 1800±100 | 15-80 | 29 | 70 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6035-35XXX | 115V 60Hz | 60 | ≤ 0.75 | 2200±150 | 15-80 | 35 | 76 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6038-38XXX | 115V 60Hz | 75 | ≤ 1.2 | 2400±150 | 15-80 | 38 | 78 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
Production Advantage:
1. The ideal solution to achieve uniform box temperature
2. Plug and play
3. Mature and reliable hood motor technology
4. Heat-resistant fan made of hot-dip aluminized steel or stainless steel
5. Operating temperature range of 120-500°C
6. The motor is installed outside the oven
7. Ball bearings can be provided to meet special requirements
Due to the dedicated bearing bracket, the motor can be installed
outside the oven to prevent overheating of the hot air blower or
the corresponding drive motor. When used in vertical axis position
and suspended fan impeller applications, the optional ball bearings
can also ensure a longer service life.
Prodcution Drawing
The appilication:
our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
