Shanghai MH Electric Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | MH motors |
| Model Number : | MH6029-29010 |
| Certification : | ETL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 3000PCS/day |
| Delivery Time : | 30 work days |
China 2.38" 48W 240VAC C Frame Motor AC Shade Pole with Independent
Grounding Wire
The motor is constructed using efficient electrical steel, which
helps improve motor efficiency, reduce energy consumption, and
enhance performance. It can be used in various applications that
require a small motor size, low power consumption, and efficient
performance.
Can be customized according to customer requirements, please contanct us.

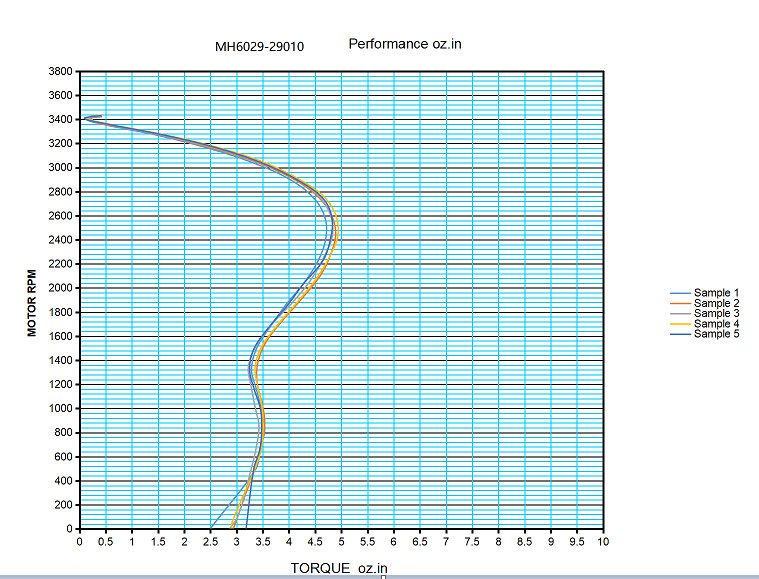

| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP Output |
| 9.53(3/8) | 110-120 220-240 | 50/60 | 3000 | 1.4 | 1/225 |
| 12.50(1/2) | 3000 | 3.1 | 1/112 | ||
| 15.63(5/8) | 3000 | 4.3 | 1/90 | ||
| 18.75(3/4) | 3000 | 6 | 1/60 | ||
| 21.88(7/8) | 3000 | 7.5 | 1/45 | ||
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |
Production Feature :
1)2 pallet stacking:2master boxes for each pallet.
350pcs in each master box; a total of 700pcs on two stacked pallets.
