Shanghai MH Electric Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | MH motors |
| Model Number : | MH6051-51001 |
| Certification : | ETL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 1000pcs/day |
| Delivery Time : | 35 work day |
165/151W Convection Blower Fan Dual Voltage for Pellet Stove or fireplace
The motor blower has a power output of 165/151 watts and operates on a voltage of Dual voltage suitable for standard power supply. This motor blower is designed to be highly efficient, providing effective convection air movement within the pellet stove for improved heat distribution. As well high-quality materials and is designed to provide reliable performance, ensuring long-lasting and efficient operation. Easy installation in pellet stoves, allowing for convenient retrofitting or replacement of existing blowers.
Quick Review:
| MH MODEL: | MH6051-51001 | Product Name: | 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace |
|---|---|---|---|
| Rated Voltage/Frequency: | 120V60Hz/240V60HZ | Current(A): | 2.24A/1.19A |
| Input Power(W): | 165/151W | Speed(RPM): | 2900 |
| Hi-Pot TEST: | 1800vac50Hz,3mA,1S | Bearing Type: | NMB BALL BEARING |
| Insulation Class: | H | Agency: | ETL |
| Thermally Protected: | TP | Wind Speed(m/s): | 25 |
| Application: | Pellet Stove/stove/gas Stove | ||
| High Light: | 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace | ||
Production Features:
1. 2.38 "high efficiency electrical steel C-FRAME motor
2. Self-cooling fan design, prolong the motor service life.
3. 2-inch laminated silicon steel sheet design, high power
4. Volute with static pressure nozzle design, to meet the different needs of customers
5. Large air volume, unique baffle design of air inlet

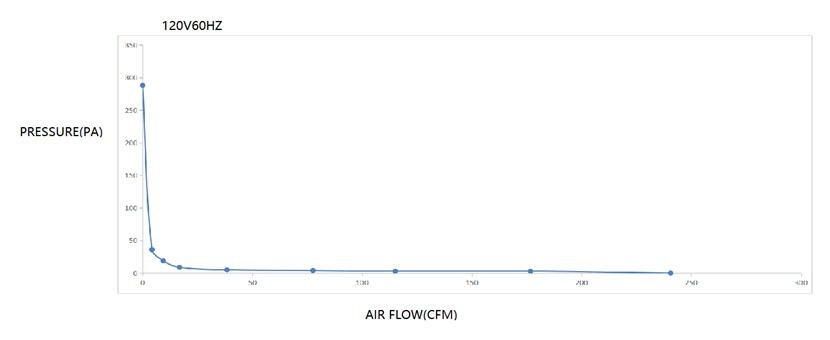

Air Flow Curve:

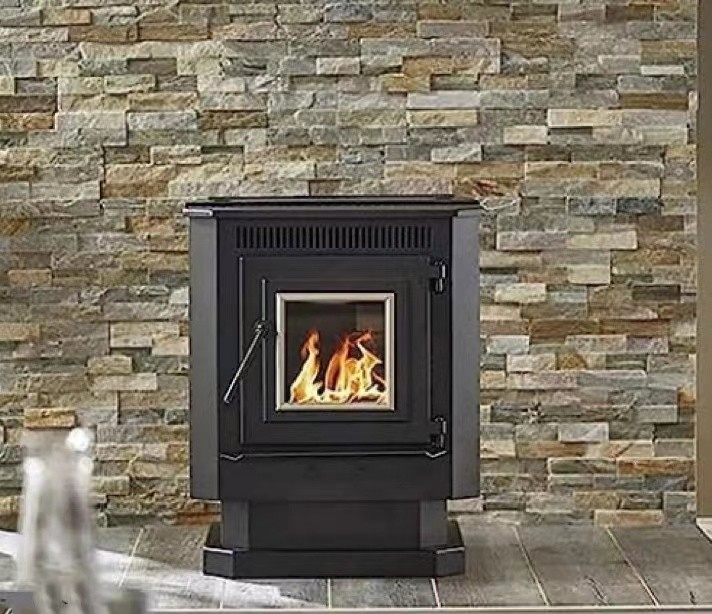

Main Application:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
