Shanghai MH Electric Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | MH motors |
| Model Number : | MH6019-19146 |
| Certification : | ETC/UL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 2000PCS/day |
| Delivery Time : | 30 work days |

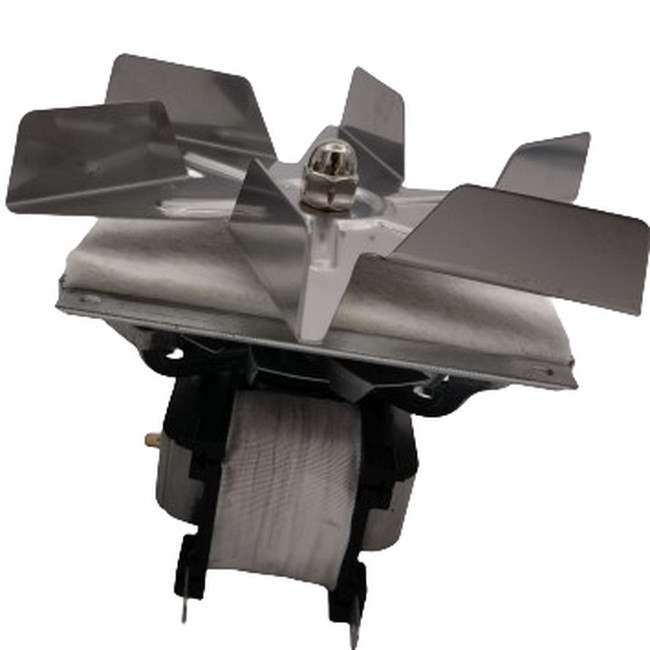

AC115V 32W shaded pole motor for pellet stove oven or ventilation
equipment
This serial motors are applied in high speed and large air volume
which can quickly achieve temperature balance inside the box.
It is typically applied in oven and hot air drying / ventilation
equipment.
Technical Rating Data:
| MH PN# | Volt/Frq (Vac/Hz) | Power (W) | Current (A) | Speed (RPM) | Lamination length (mm) | Bearing | Fan Model | Agency | Incl.Cls |
| MH6019-19XXX | 220-240V, 50/60Hz | 42 | ≤ 0.4 | 1800±100 | 19 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6029-29XXX | 220-240V, 50/60Hz | 50 | ≤ 0.45 | 2300±150 | 29 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6035-35XXX | 220-240V, 50/60Hz | 55 | ≤ 0.4 | 2100±150 | 35 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6038-38XXX | 220-240V, 50/60Hz | 55 | ≤ 0.4 | 2300±150 | 38 | NMB BALL BEARING | Φ152*20mm | CE/CCC/ETL | H |
| MH6019-19XXX | 110-115V 50/60Hz | 45 | ≤ 0.9 | 1800±100 | 19 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6029-29XXX | 110-115V 50/60Hz | 55 | ≤ 0.9 | 1800±100 | 29 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6035-35XXX | 110-115V 50/60Hz | 60 | ≤ 0.75 | 2200±150 | 35 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
| MH6038-38XXX | 110-115V 50/60Hz | 75 | ≤ 1.2 | 2400±150 | 38 | NMB BALL BEARING | Φ152*20mm | UL/ETL | H |
Production Feature:
1. High temperature wire connection, riveting standard 250 plastic
shell protected quick terminals.
2. Heat-resistant fan made of stainless steel by stamping.
3. Heat-resistant ball bearings: NMB BALL BEARING.
4. Assembled with metal plates and insulated cotton for dual
insulation designcooling fan helps to reduce the operating
temperature of the bearings and improve the product lifespan.
5. Mature and reliable shaded pole motor technology, suitable for
various high temperature environments.
7. High-quality electrical steel and zinc die-casting structure
ensure the stability of the product.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been
specialize in the field of exporting Hot Air Oven Shade Pole Fan
Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches
moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air
motor for several years. We have our own production facility and a
strong R&D team.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
|
|
