| Brand Name : | MH motors |
| Model Number : | MH6038-38019 |
| Certification : | UL/ETL |
| Price : | Negotiable(EXW) |
| Payment Terms : | T/T |
| Supply Ability : | 3000PCS/day |
| Delivery Time : | 30 work days |

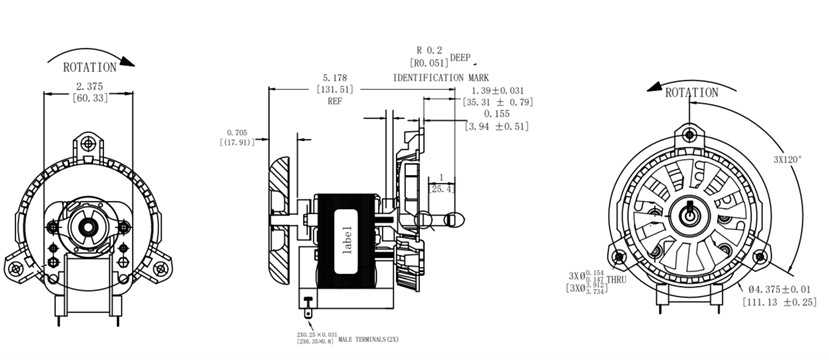

China 2.38" 95W 240VAC C Frame Motor AC Shade Pole Dual Hz
The motor is constructed using efficient electrical steel, which
helps improve motor efficiency, reduce energy consumption, and
enhance performance. It can be used in various applications that
require a small motor size, low power consumption, and efficient
performance.
Can be customized according to customer requirements, please contanct us.
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP Output |
| 9.53(3/8) | 110-120 220-240 | 50/60 | 3000 | 1.4 | 1/225 |
| 12.50(1/2) | 3000 | 3.1 | 1/112 | ||
| 15.63(5/8) | 3000 | 4.3 | 1/90 | ||
| 18.75(3/4) | 3000 | 6 | 1/60 | ||
| 21.88(7/8) | 3000 | 7.5 | 1/45 | ||
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |
Production Feature :
